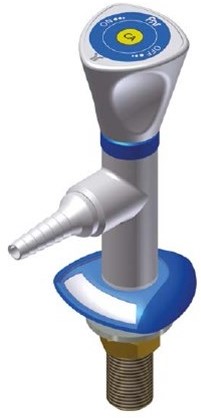

FAR MDS tap 90° for technical gases

Welke lengte heeft u nodig?
/
U heeft 0 stuks nodig voor 0 euro incl. BTW
54,50
Add to wish list
In stock: 3
Add to favorites
  • Product description and specifications
  • Documents

Barcode

Product description

Gas tap for non-flammable gas, wall- and bench mounting

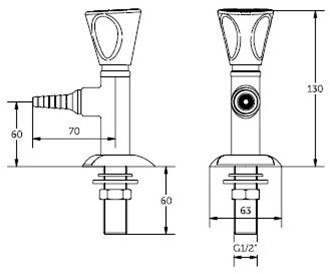

Column height: 130mm
Standout: 60mm
Finishing: matt epoxy powder coating
Colour: light grey (RAL-7035)
Handle: PP, light grey (approx. RAL-7035)
Medium indication on flange and handle
To be used for all technical gases like vacuum, compressed air, steam and nitrogen.
You can list the required medium in the remarks section. The remarks section will appear when finishing your order.

Technical data:

  • Thread: 1/2", 60mm (ISO-228/1)
  • Nozzle: fixed
  • Headwork: needle valve
  • Max working pressure: 20 Bars
  • Flange: ø63mm

Optional:

  • For purity 5.0
  • Quick release system
  • ST release system
  • For steam with viton O-rings
  • For oxygen with degreased headwork

Specifications

MediumTechnical gas
MontageWall mounting
Bench mounting
TypeSingle tap
BrandFAR
CategoryMDS line
Product code11-13010.2M
Unitstuk(s)
