Spectrolab-Plus products are suitable for pure gases up to a purity of class 6.0 (99,9999%).

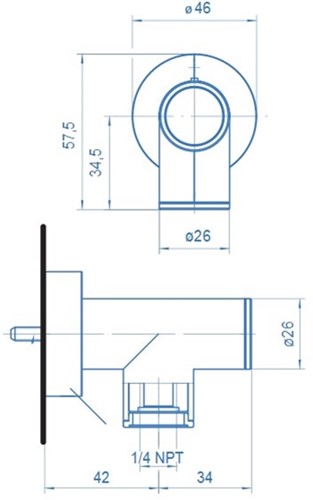

Inlet: G 3/8"
Oulet: 1/4" - 18 NPT female
Connection for a wall thickness up to 7mm included.
Also deliverable with straight outlet.
Longer connection possible.You can list the required medium in the remarks section. The remarks section will appear when finishing your order.
- Material: brass (optional: stainless steel)
- Leak rate: 10-8 bar cm3/s He
- All equipment has been 100% Helium-leak-tested using a mass-spectrometer
